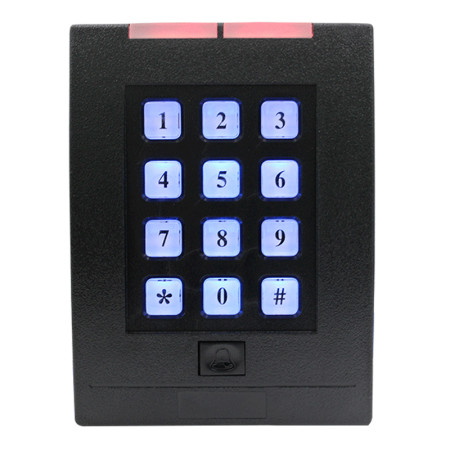

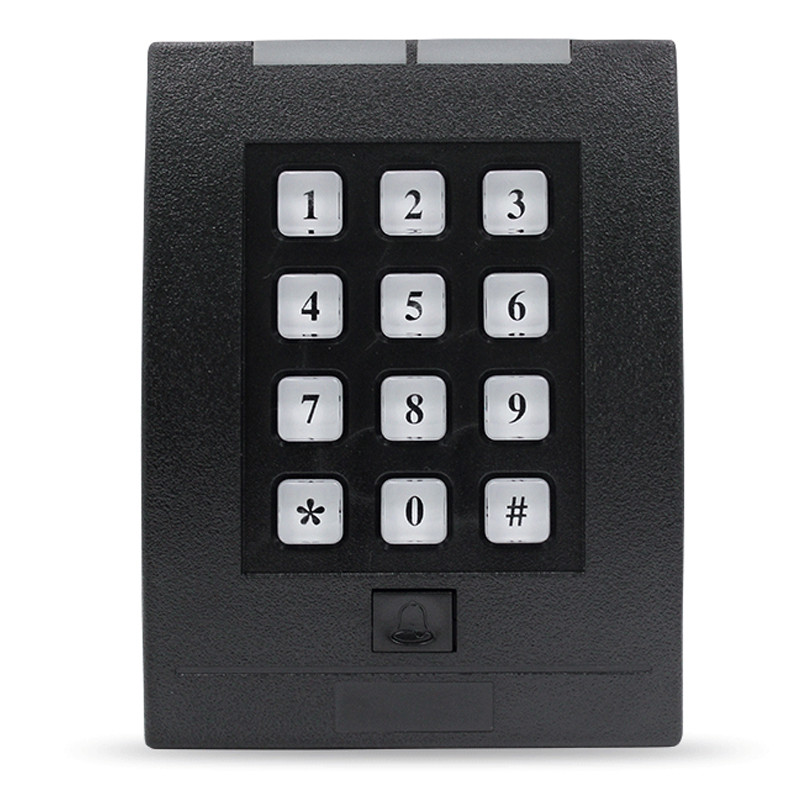

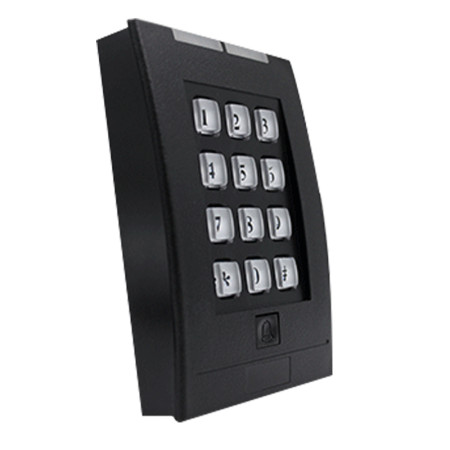

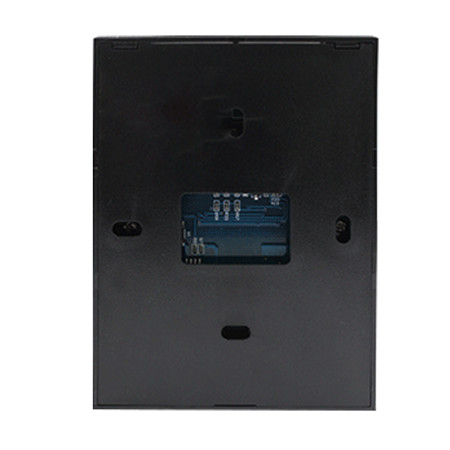

840KP Proxomity card & keypad reader

Direction : None

Security Mode : Fail Safe with Signal

Model Number : K7612N

Brand Name : LUCKING DOOR

Origin : Mainland China

Certification : NONE

Smart home platform : NONE

door bell function : NO support

Operating Voltage : DC 12V 10%

Wiegand Interface : Wiegand 26 bit

Adjustable Alarm Time : 0 - 3 minutes

LUCKING DOOR RFID Metal Access Control EM Card Reader Keypad With 1000 Users 125KHz Card Reader Keypad Key Fobs Door Access

Capacity: 1000 user's Support entry modes : Password Only / ID Card Only / Password + ID Card

Luminous keyboard design

Tamper Alarm Function

Product Details

Features:

Strong Zinc Alloy Electroplated anti-vandal case.

Full programming from the keypad

2000 uses, supports Card, PIN, Card + PIN.

Can be used as a stand alone keypad.

Backlight keys.

Wiegand 26 input for connection to external reader.

Wiegand 26 output for connection to a controller.

Adjustable Door Output time, Alarm time, Door Open time .

Very low power consumption (30mA).

Fast operating speed,

Lock output current short circuit protection.

Easy to install and program.

Built in light dependent resistor (LDR) for anti tamper.

Built in buzzer
