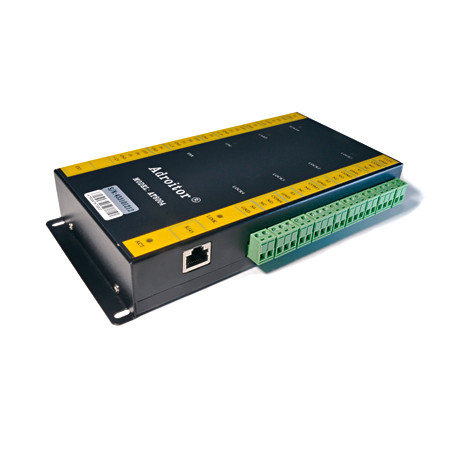

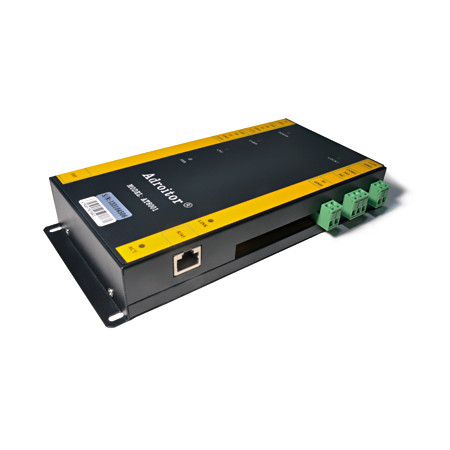

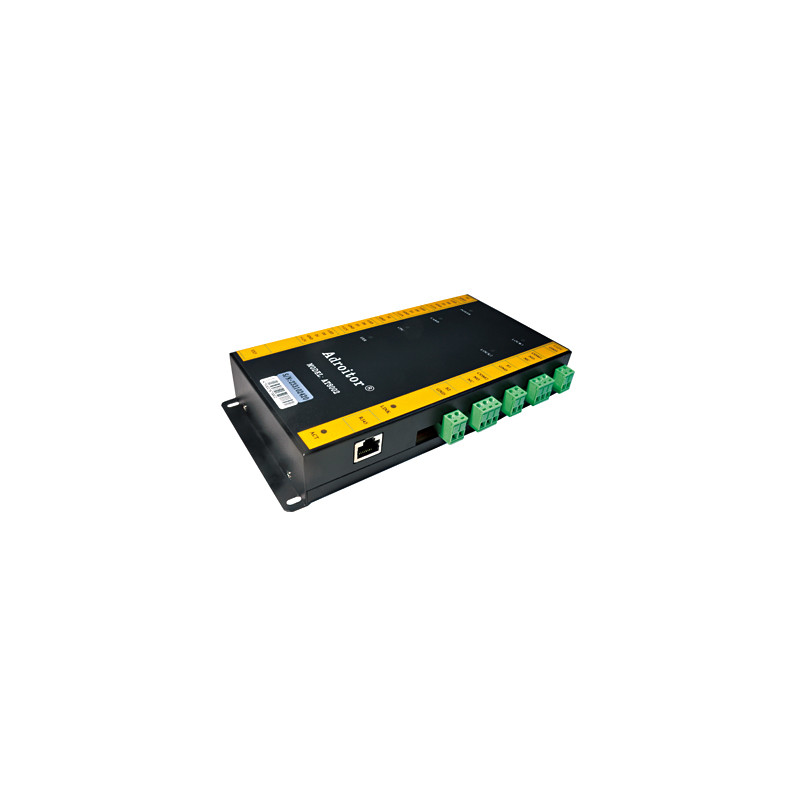

Controller adroitor

Rp0.00

Tax excluded

• 220 mm x 125 mm x 35 mm, DC 12V, 4- 7 amper

• TCP/IP interface, optional 4G networking

• Wiegand 26- 66 bit format, support RFID reader, fingerprint reader, barcode reader connected in

• allow local database and cloud database management

• allow mobile phone remote control and unlock

• 1/ 2/ 4 door access control

• Easy software for access control, time attendance management

• Windows 7, Windows 10 supported

Quantity

Last items in stock

Model:GEE-AC-AT8000

Physical
Model	AT8001/ 8002/ 8004
Size	220 mm(L) x 125 mm( W) x 35 mm (H)
Interface	TCP/ IP 10M/ 100 M ( RJ45), optional 4G networking
Weight	650 g
Features
Power supply	12 VDC, 4 - 7 Amper
Power Consumption	< 200 mA
Input format of reader	Wiegand 26 - 66 bit, support LF/ HF/ UHF RFID reader, fingerprints reader, barcode reader
Max qty of controlled door	AT8001: 1 door, bilateral pass ( support max 2 reader )
	AT8002: 2 doors, bilateral pass ( support max 4 reader )
	AT8004, 4 doors, one-way pass ( support max 4 reader )
Delay time of Door Opening	1 - 600 second ( adjustable)
Qty of Users	40,000
Qty of Event Buffers	100,000
Max communicate distance	100 meters
Alarm	Long time open, illegal breack in, fire and thief alarm
Remote control	yes
Interlock	yes
Anti-pass and tail	yes
Urgent unlocking	yes
keypad and password	yes
Interlock	yes
Software
OS	Windows XP, Vista, 7, 8, Windows 10
SDK	Access control software SQL, SDK and source code
Environment
Operation Temp	- 40 C- 70C
Operation Humidity	10- 90 % RH, no condensation

Reference

In stock 1 Item
